What is it ?

You can draw on map on LotAtc. It can be used to delimite zones, indicate POI, or anything else….

Available draws:

  • Text
  • Line
  • Polygon
  • Cercle

How ?

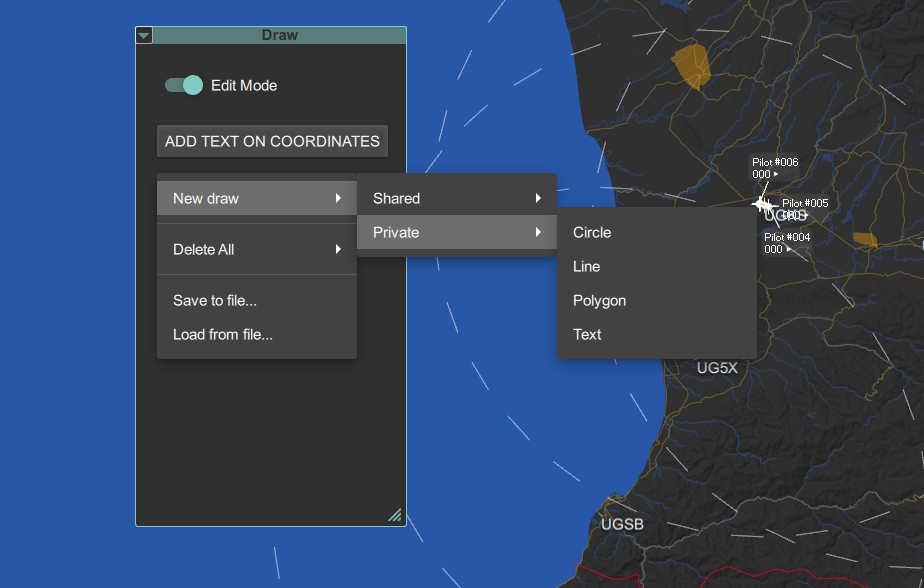

On maps view, you can activate draw part in draw tab, then switch on “Edit mode”.

You can make draw private (only for yours eyes) or shared (shared with all friend coalition controllers).

To draw use left click to begin the draw.

  • Circle, first point is the center, a second click stop the draw
  • Polygon/ lines each left click define a point, use right click to stop
  • Text, use edit to set text

Shared draws are saved into server, if you disconnect/reconnect you will get them. Private are not saved.

A private draw can shared later using edit

TIPS: Use [Alt + Left click] to set a text draw under the cursor (no need to be in edit mode)

You can also use the “Add text on coordinate” to open a box, enter the coordinate, and an editable text will appears at this precise place.

Edit draw

Left click on a draw or select it from the draw list in the draw tab to edit it. Properties depends of the draw type.

Load / Save

Use load / save button to load/save all draws from disk. Then will be saved in JSON format, you are free to edit them.

Add draws automatically at start

If you want to automatically load draws at start, you can use the Saved Games/DCS/Mods/LotAtc/userdb/drawings/(blue or red)/*.json files to do so (on the server).

Example of file:

    {
    "__comments":"THIS FILE IS AN EXAMPLE AND WILL NOT BE LOADED BECAUSE enable=false",
    "enable": false,
    "drawings": [
        {
            "author": "troller",
            "brushStyle": 9,
            "center_x": 40.05480957031247,
            "center_y": 42.83831791946996,
            "color": "#ffff0000",
            "colorBg": "#33ffff0c",
            "id": "{4feac678-4a66-49d6-b7d2-9b31789b187f}",
            "lineWidth": 1,
            "name": "",
            "radius": 201748.99037650102,
            "shared": true,
            "timestamp": "30.01.2018-13:06:06",
            "type": "circle"
        },
        {
            "author": "troller",
            "brushStyle": 1,
            "color": "#ffff0000",
            "colorBg": "#33ff0000",
            "id": "{646908ac-4457-40a8-83cb-53159bf9e593}",
            "lineWidth": 1,
            "name": "",
            "points": [
                {
                    "x": 37.604858398437464,
                    "y": 42.77383628656178
                },
                {
                    "x": 37.582885742187486,
                    "y": 43.31179332972904
                },
                {
                    "x": 38.286010742187464,
                    "y": 42.975118185932665
                },
                {
                    "x": 37.96740722656248,
                    "y": 42.49093908680792
                },
                {
                    "x": 37.494995117187486,
                    "y": 42.48283741776425
                },
                {
                    "x": 37.494995117187486,
                    "y": 42.49093908680792
                }
            ],
            "shared": true,
            "timestamp": "30.01.2018-13:29:29",
            "type": "polygon"
        }
    ],
    "version": "1.0.3"
}

Use enable item to activate or not the file. You can use directly files by saving in Draw tab! Just move them in the correct folder.

Files in blue directory will only affect blue coalition controllers. Red for… red…
